R36MAX2 Open Source Handheld Game Console
R36MAX2 Open Source Handheld Game Console
Features
Features
4.5-Inch IPS Display
Linux Open-Source System
Up to 18,000+ Games
64G / 128G Storage Options
4000mAh Long Battery Life
Couldn't load pickup availability
- Secure Payment
- Return Support
- Free Shipping

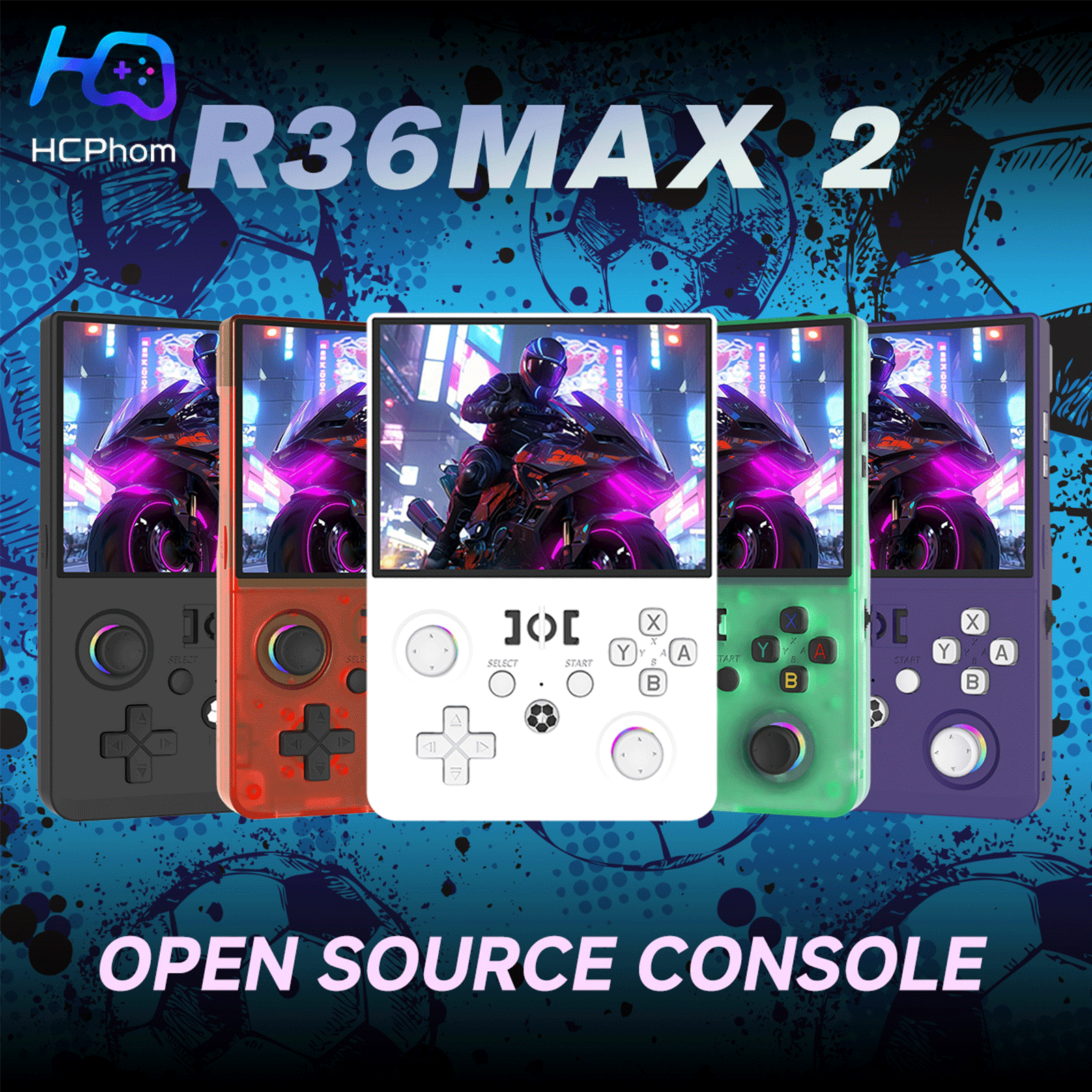

The R36MAX2 Open Source Handheld Game Console brings retro-style gaming into a compact and travel-friendly design. With a 4.5-inch IPS display, Linux-based system, dual joystick controls, RGB lighting, and a built-in rechargeable battery, it is made for casual play at home, entertainment on the go, and easy tech gifting.
Its vertical handheld layout feels familiar and simple to use, while the open-source Linux platform supports a wide range of retro-style game formats depending on system compatibility and selected version.
Why You’ll Like It
Compact handheld design for easy everyday play
4.5-inch IPS screen for clear portable visuals
Linux-based system for flexible retro-style gaming

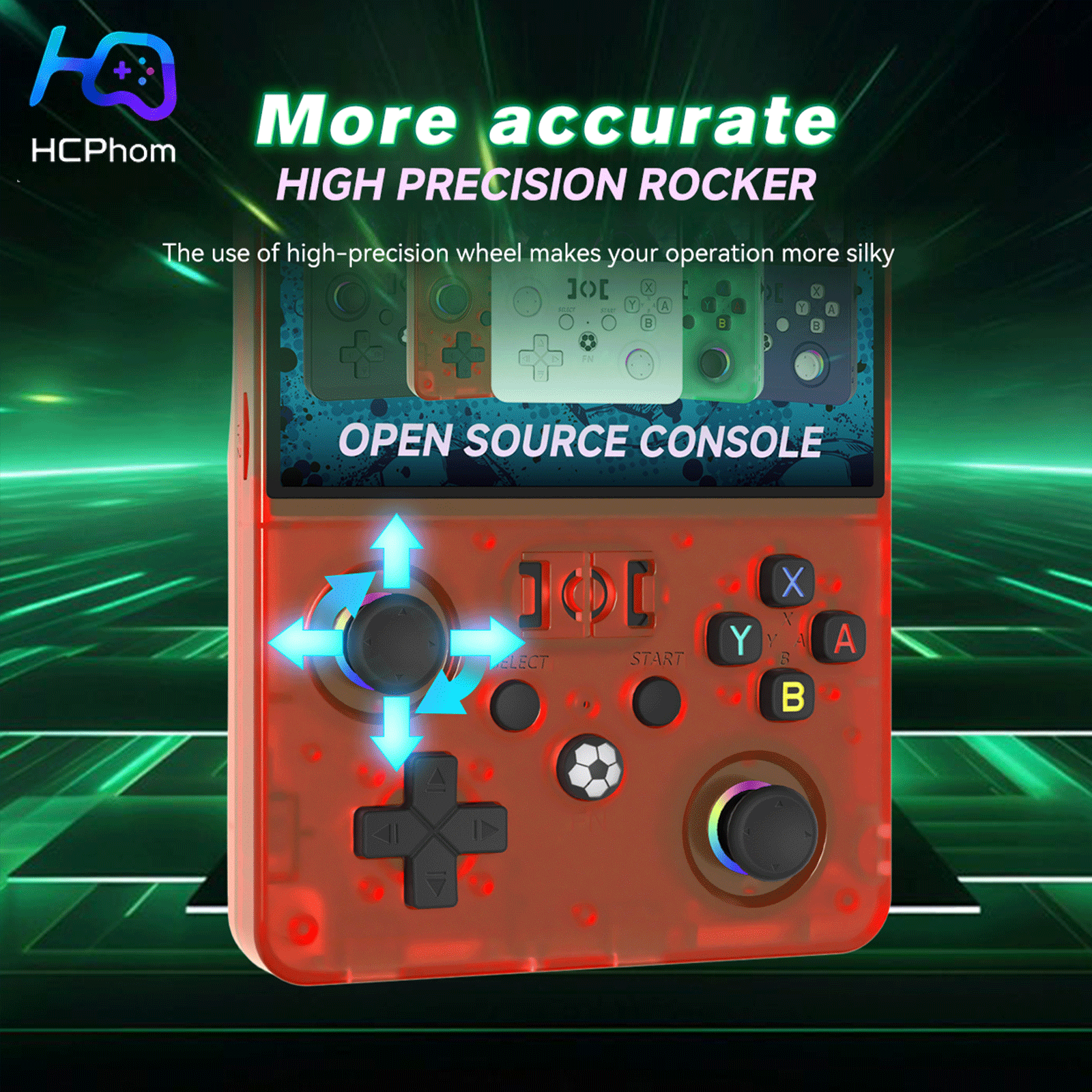

Dual joystick controls with RGB lighting
64G / 128G storage options depending on selected version
Built-in 4000mAh battery for portable entertainment
Wi-Fi support for selected system and local sharing functions
Suitable for home, travel, breaks, and gifting
Designed for Everyday Entertainment
Whether you are relaxing after work, taking a short travel break, or looking for a fun gift, the R36MAX2 offers a simple handheld gaming experience without needing a large setup. It is small enough to carry, easy to store, and practical for casual entertainment.
Version Notice
Storage capacity, game quantity, preloaded content, accessories, and available colors may vary depending on the selected version and supplier batch. Please check the product options and images carefully before placing your order.

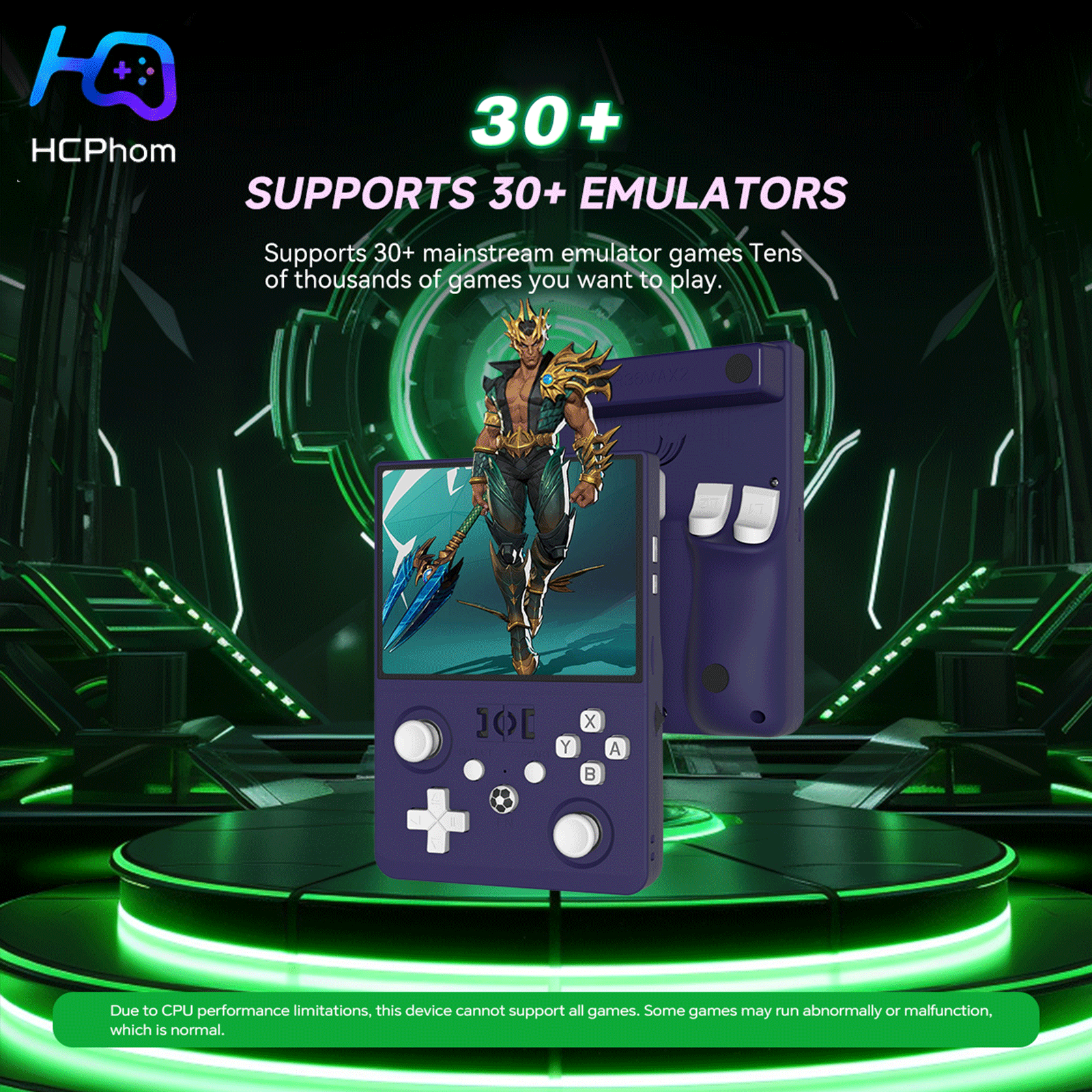

Some games may not be fully compatible due to CPU, emulator core, system, or file limitations. This is normal for open-source retro handheld systems.
Share
More information
Model
Product Name: R36MAX2 Open Source Handheld Game Console
Model: R36MAX2
Category: Handheld Game Console
System: Open-source Linux system
Storage Options: 64G / 128G depending on selected version
Use Scenario: Portable gaming, travel entertainment, retro-style gameplay, tech gifts

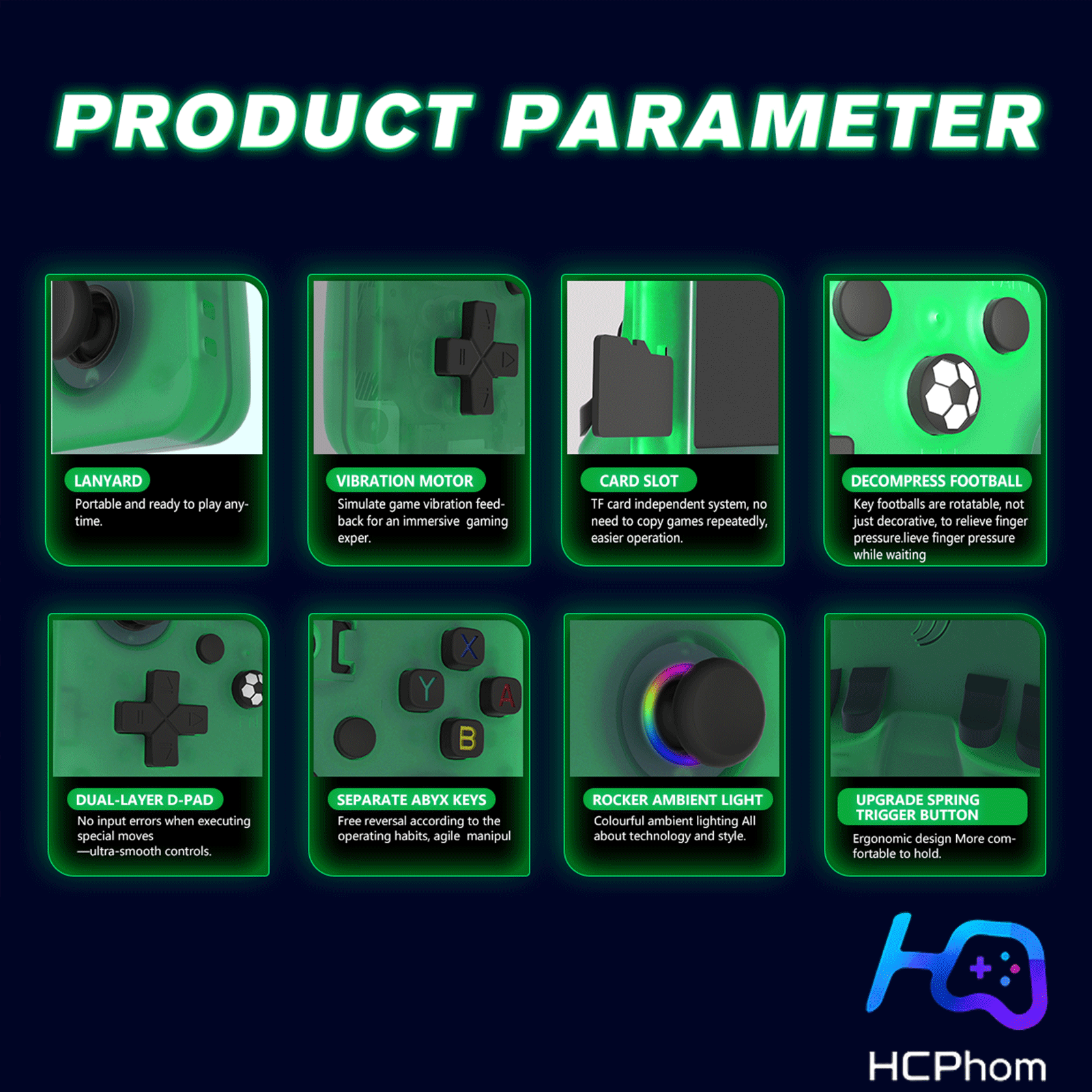

Parameters

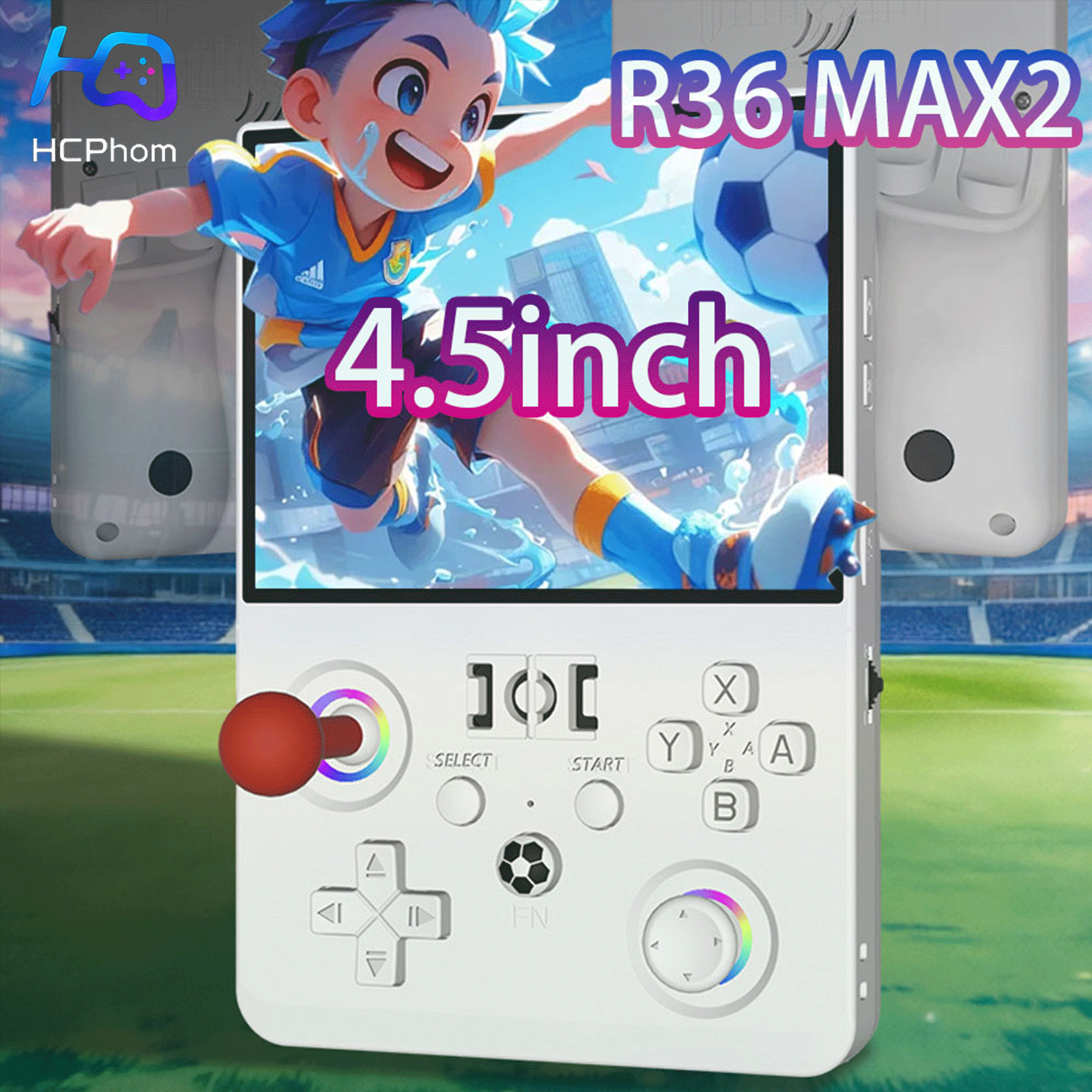

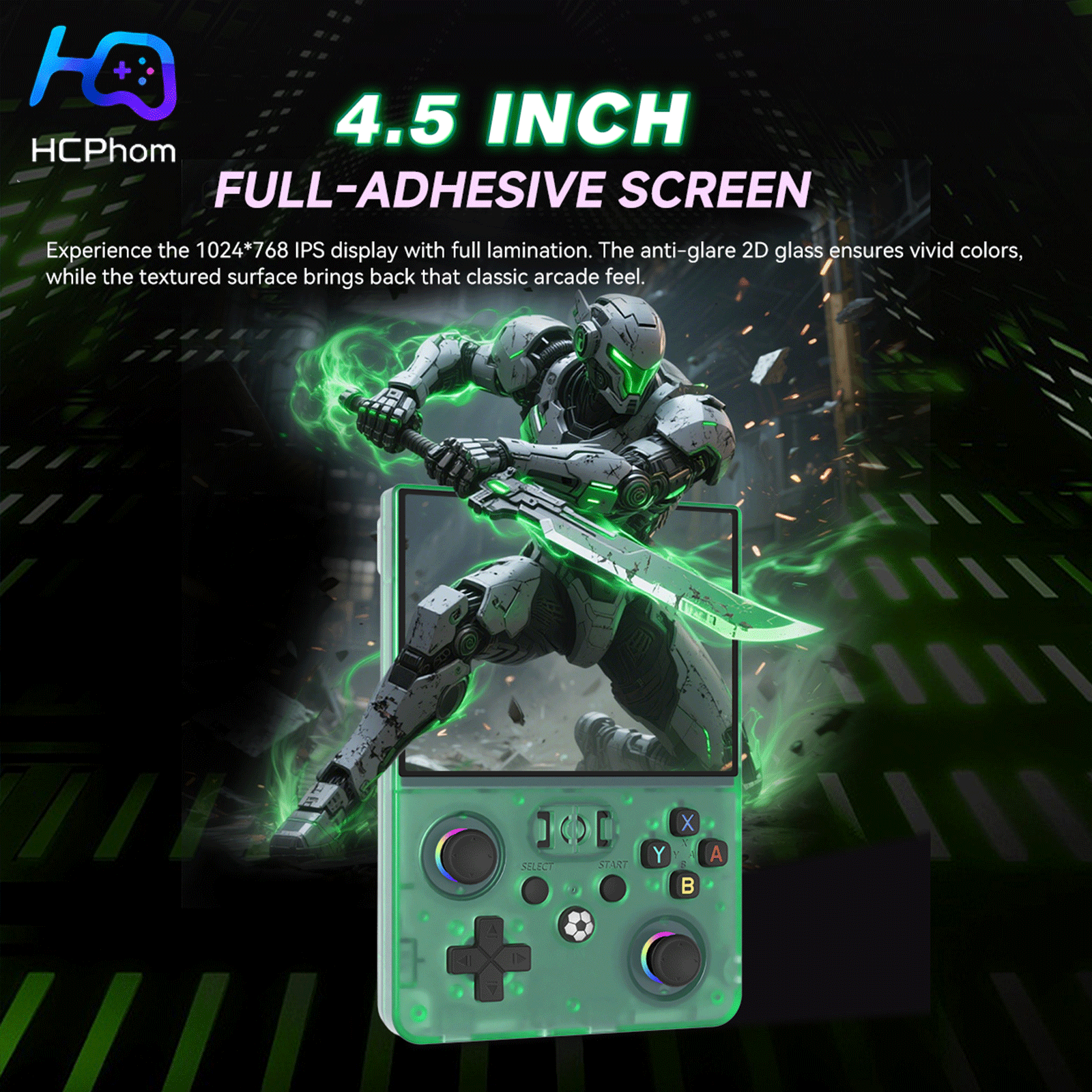

Display: 4.5-inch IPS OCA full-lamination HD MIPI screen
Resolution: 1024 × 768
CPU: RK3326 ARM 64-bit quad-core Cortex-A35 up to 1.5GHz
GPU: Mali-G31MP2 520MHz, OpenGL ES 3.2 support
RAM: 1GB + 4GB EMMC
TF Card Support: 16GB–256GB
Wi-Fi: 2.4G Wi-Fi 802.11 b/g/n
Speaker: Built-in 8Ω 1W chamber speaker
Vibration Motor: Rated speed 13,000 ± 3,000 RPM, Class 1 vibration rating

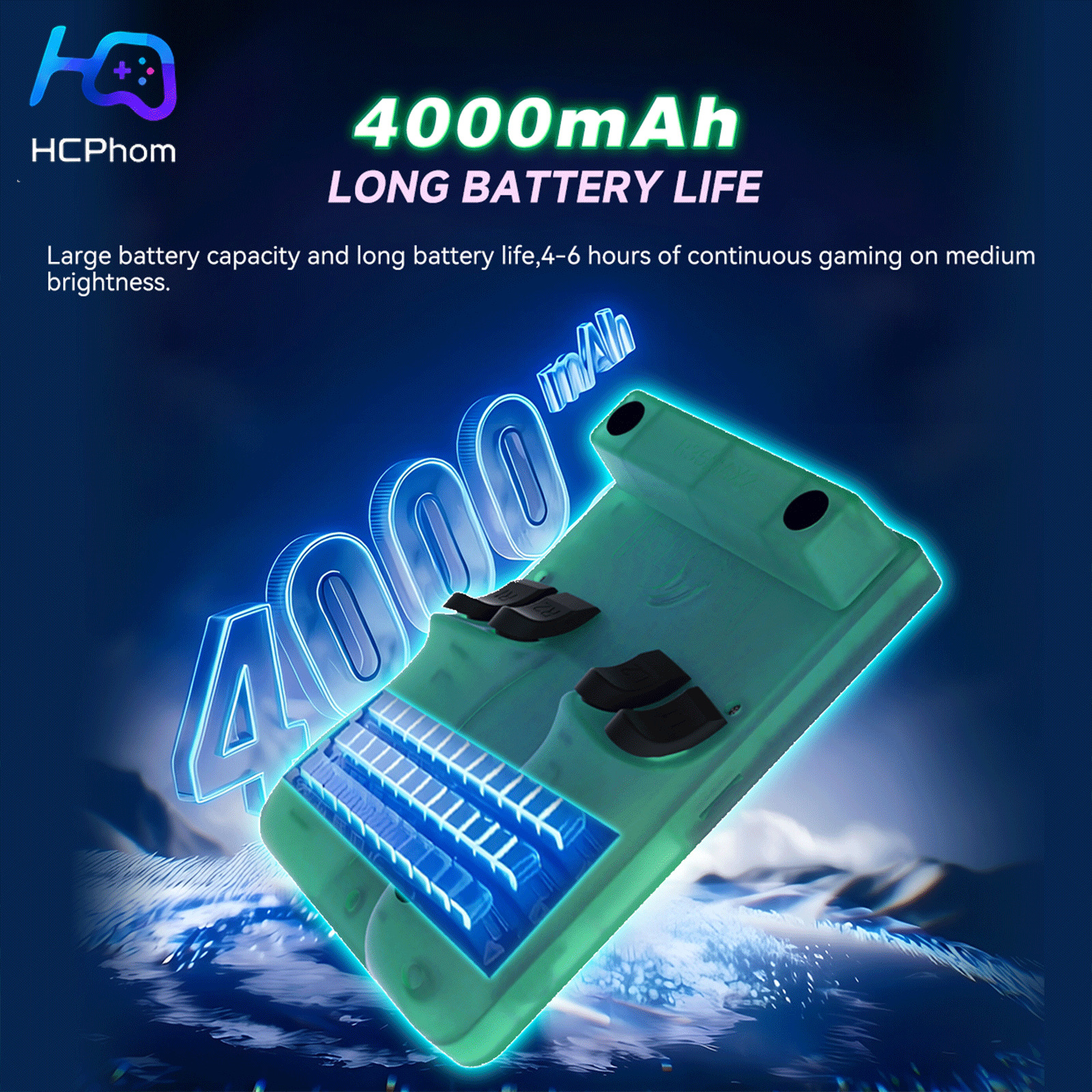

Battery: Built-in 3.7V 4000mAh lithium battery
Battery Life: Approximately 4–6 hours depending on use
Charging Time: Approximately 2 hours
Input Power: 5V 1.5–2A
Maximum Power Consumption: 5W
Charging Port: Type-C
OTG Port: Type-C OTG supported
Audio Port: Standard 3.5mm headphone connector

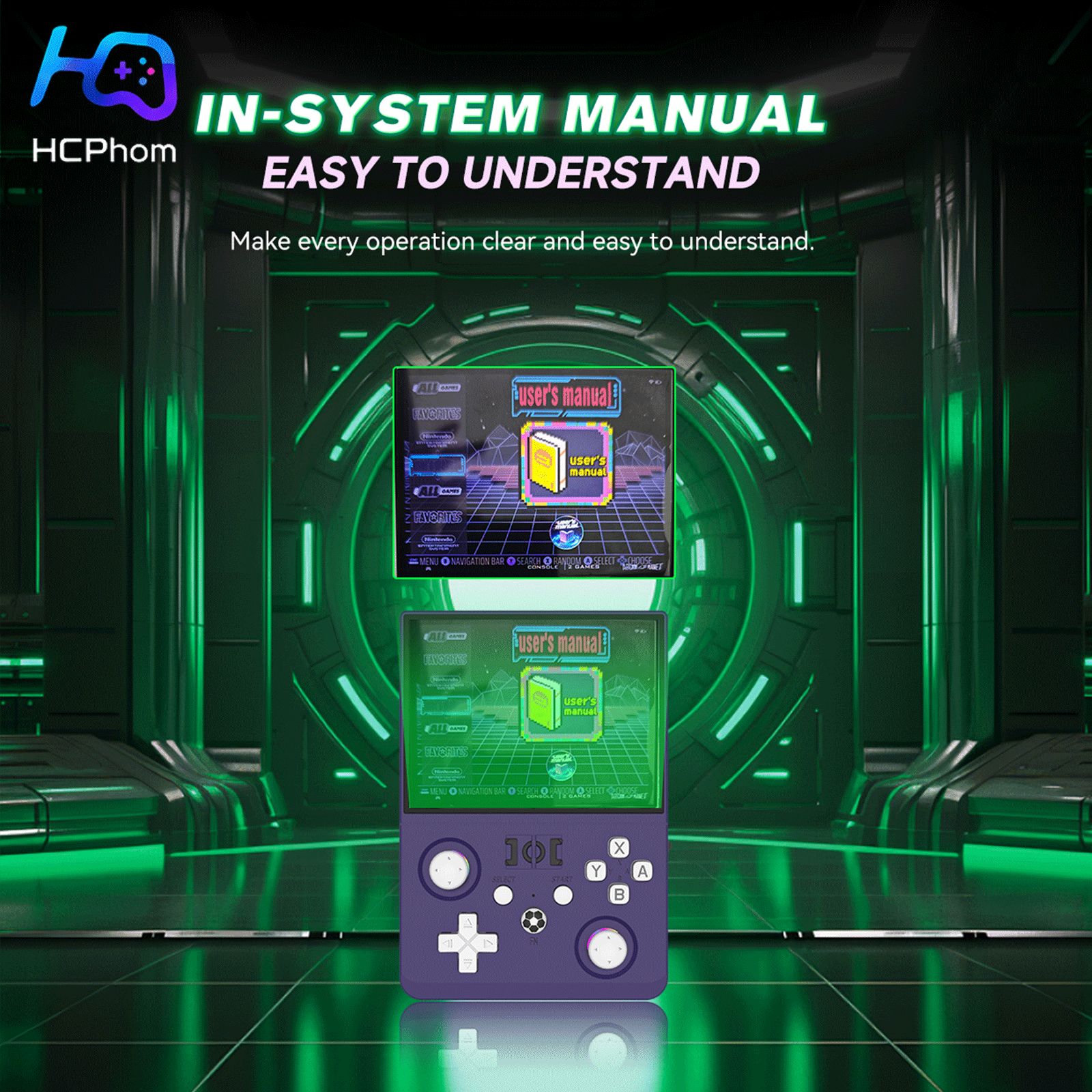

User Guide
Power On: Press and hold the power button for about 5 seconds, then wait for the system to enter the main interface.
Power Off: Press and hold the power button for about 7 seconds to open the power-off menu, then confirm shutdown. Please exit the game before shutting down.
Charging: Please charge the device when the red indicator light turns on. Use a 5V charger and avoid chargers exceeding 5V2A.
Brightness Adjustment: Use FN + volume keys, or enter system settings to adjust screen brightness.
Common Shortcuts:
Save Game Progress: SELECT + R1
Load Saved Progress: SELECT + L1
Exit Game: SELECT + START twice
Display FPS: SELECT + B
Pause Game: SELECT + A
RA Menu: SELECT + X
Screenshot: SELECT + Y
Wi-Fi Note: Wi-Fi function may stop working when an external device is connected to the OTG port, and will resume after the external device is removed.
Compatibility Note: Some games may not be fully compatible due to CPU, emulator core, system, or file limitations. This is normal for open-source retro handheld systems.

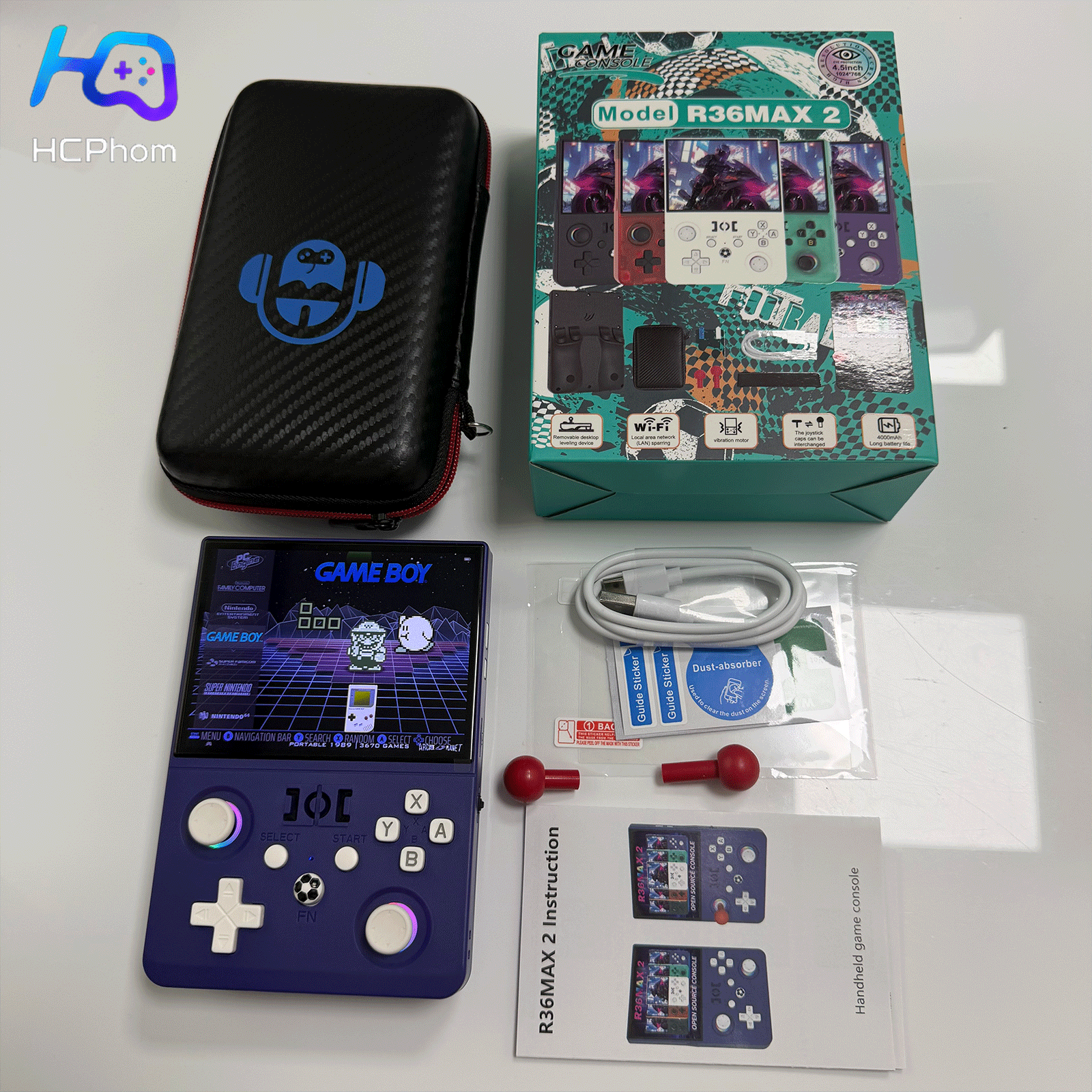

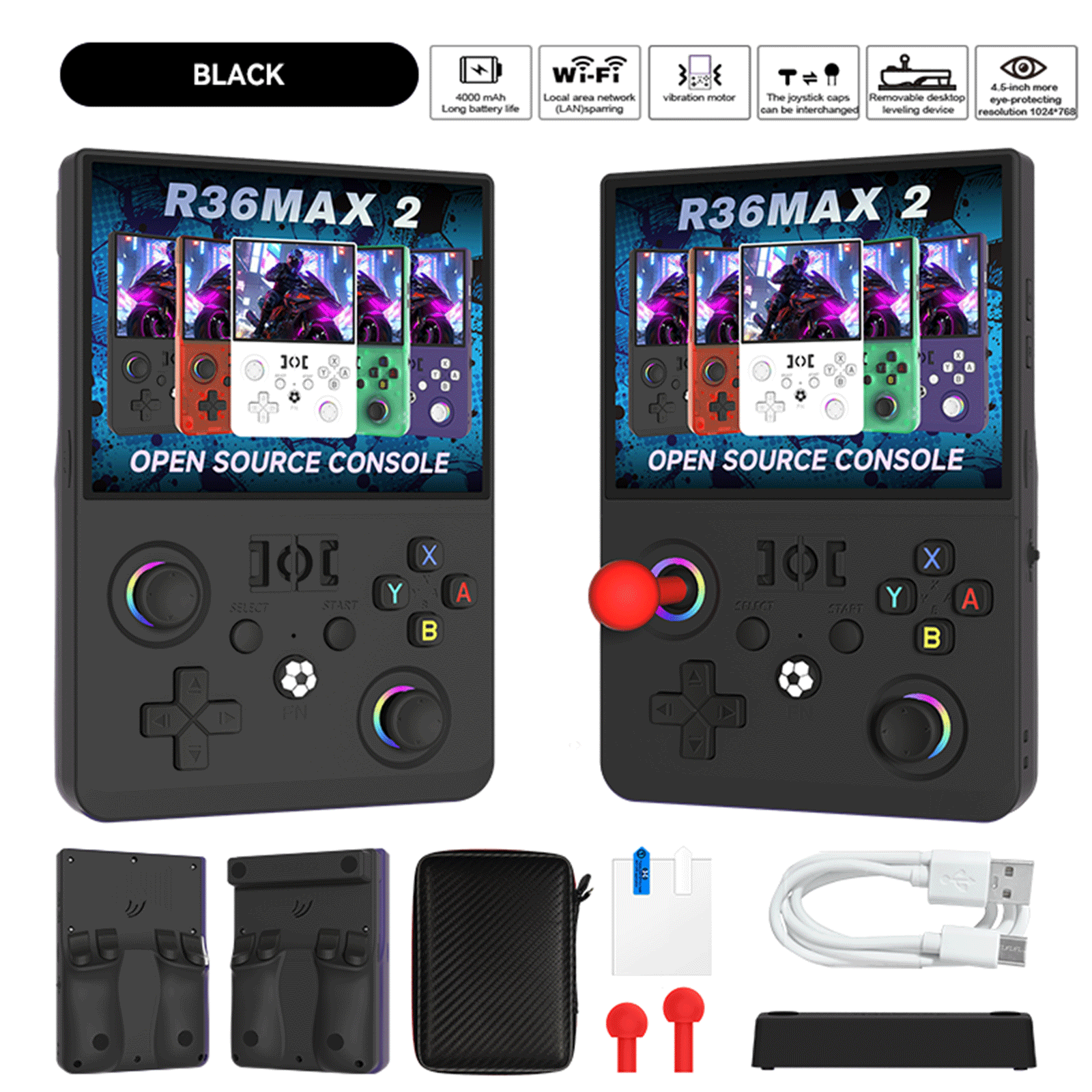

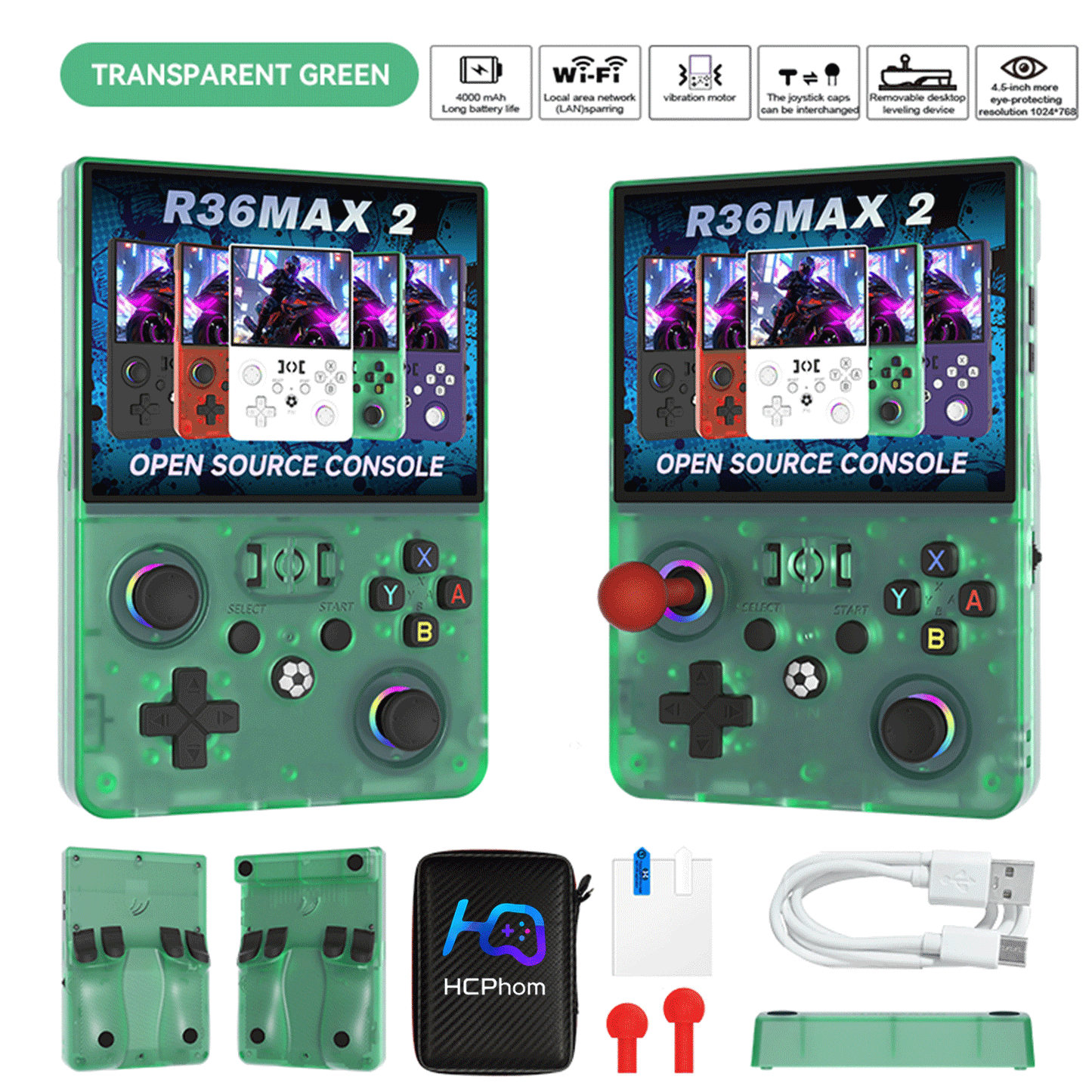

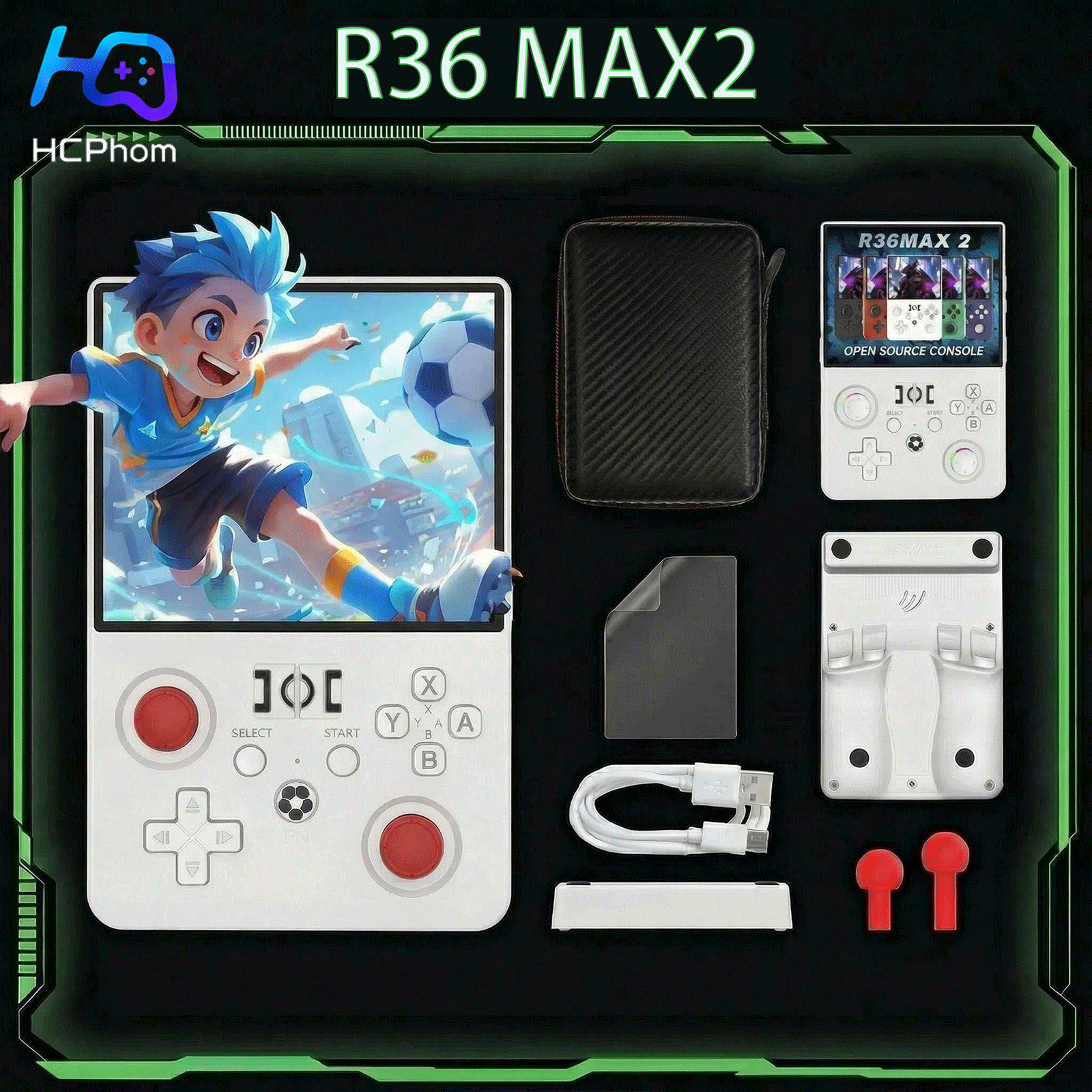

Packing List

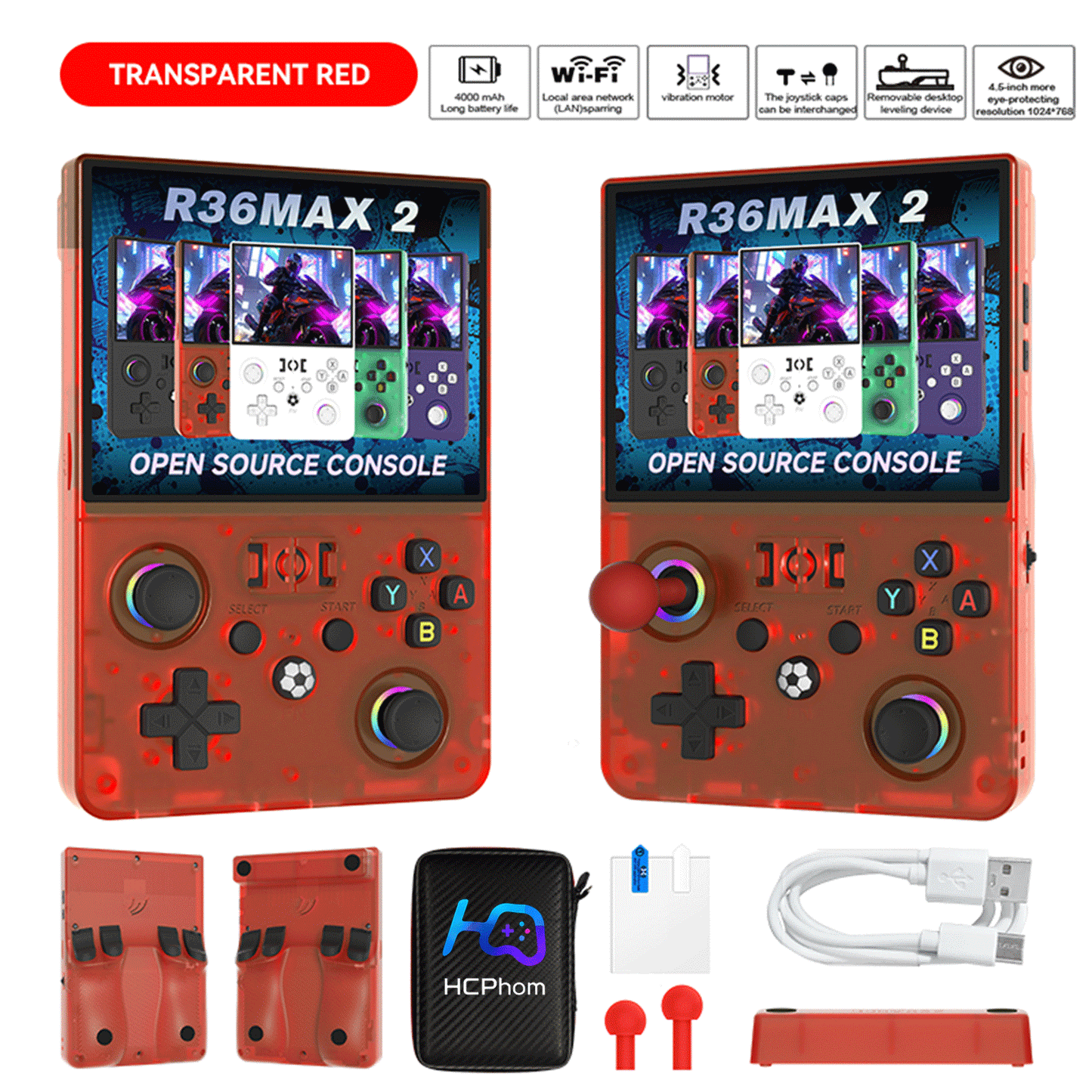

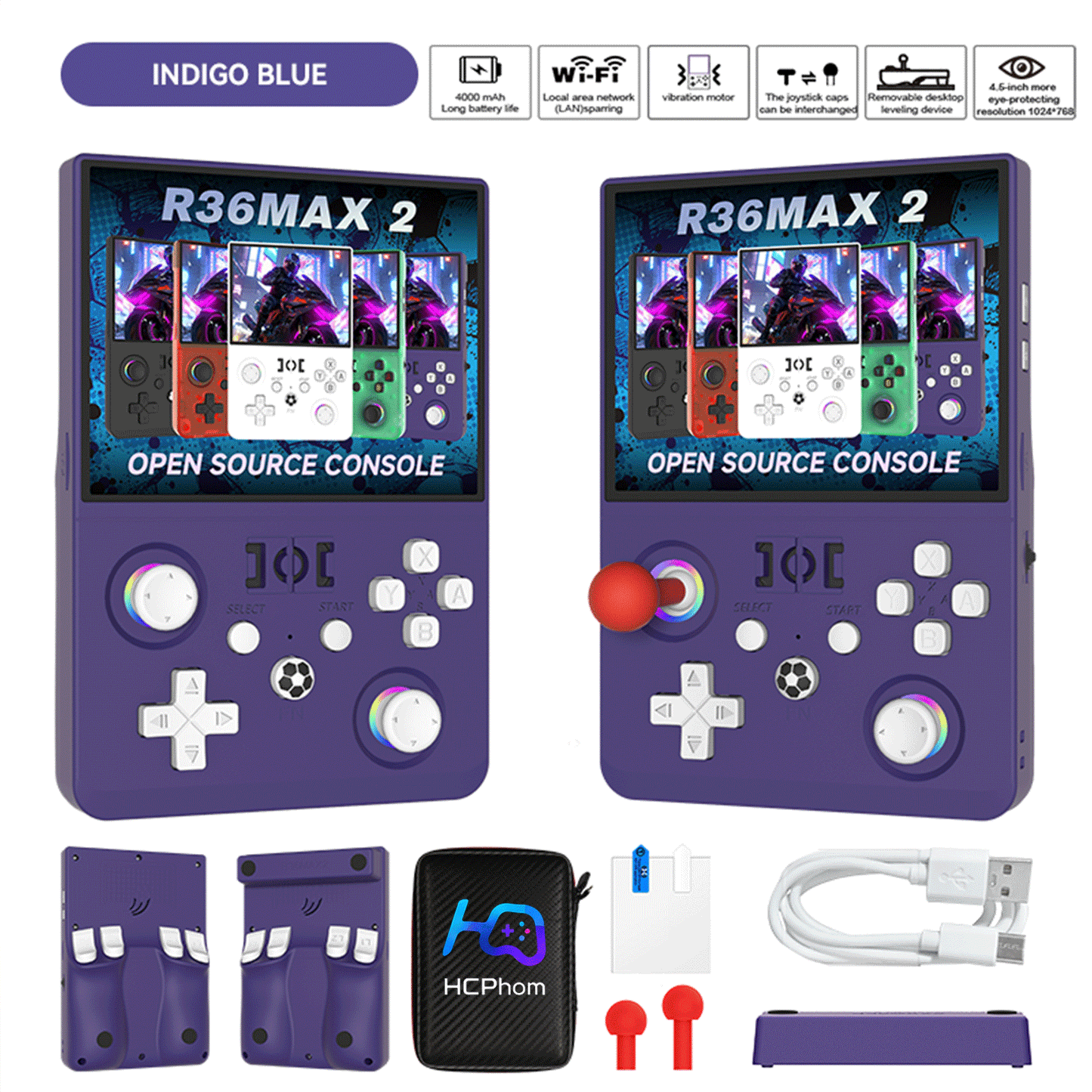

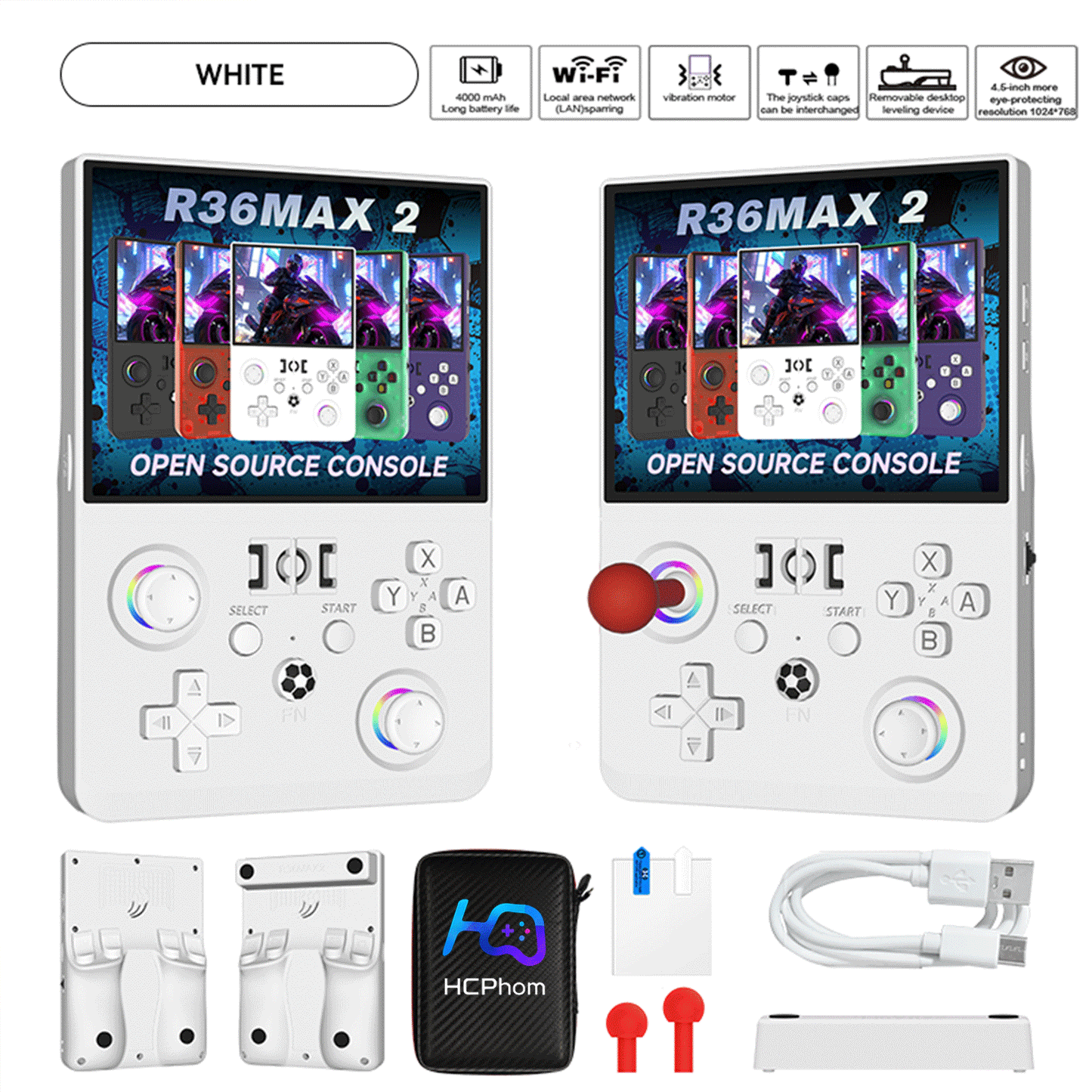

R36MAX2 handheld game console × 1
Type-C data cable × 1
Protective case × 1
Screen protector × 1
Replaceable joystick caps × 2
Instruction manual × 1
Package contents may vary depending on selected version, storage option, and supplier batch.
FAQ
How many games are included?
The R36MAX2 may include up to 18,000+ preloaded games depending on the selected storage version and supplier batch. Preloaded content may vary.
Are all games guaranteed to run?
No. Some games may not be fully compatible due to CPU, emulator core, system, or file limitations. This is normal for open-source retro handheld systems.
Does it support Wi-Fi?
Yes. The R36MAX2 supports 2.4G Wi-Fi 802.11 b/g/n. Local sharing or multiplayer-related features depend on game support, system settings, and selected version.
How long does the battery last?
The built-in 4000mAh battery supports approximately 4–6 hours of use depending on brightness, volume, game type, and usage habits.
Does it support headphones?
Yes. The console includes a standard 3.5mm headphone connector.
What charger should I use?
Please use a 5V charger. Avoid chargers exceeding 5V2A.
Why do some games not open or run smoothly?
Some games may require a different emulator core, or may not be fully supported by the system. Compatibility can vary depending on game file, emulator core, and system performance.
What should I do if I need help?
Please contact HCPhom support with your order number, product model, selected version, and a clear description of your question.
